AD5066ARUZ - Analog Devices

Description: Fully Accurate, 16-Bit, Unbuffered VOUT, Quad SPI Interface, 2.7 V to 5.5 V nanoDAC in a TSSOP −40°C to +105°C

Download AD5066ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

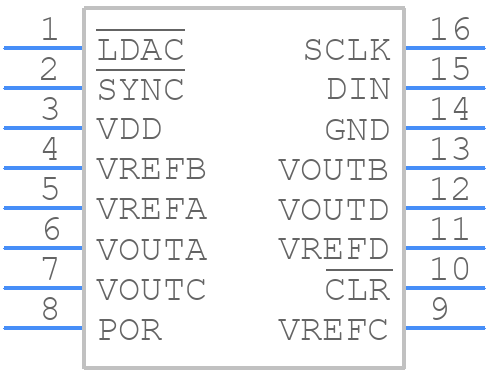

Symbol
AD5066ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5066ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
AD5066ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

AD5066ARUZ Details

  • Manufacturer Part Number:

    AD5066ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5066ARUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the VREF pin, and then the digital interface pins (SCL, SDA, etc.). This ensures that the internal voltage regulators and references are properly initialized.
  • To ensure accurate voltage output, it is essential to decouple the VREF pin with a 10uF capacitor to GND, and to use a low-noise, low-impedance voltage source for VREF. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5066ARUZ can drive up to 1nF of capacitance at its output. Exceeding this limit may cause instability or oscillations in the output voltage.
  • The AD5066ARUZ does not have a built-in watchdog timer. However, you can implement a watchdog timer using an external microcontroller or a dedicated watchdog timer IC, which can monitor the AD5066ARUZ's output voltage and reset the system if it deviates from the expected value.
  • Yes, the AD5066ARUZ can be used in a multi-master I2C bus configuration. However, it is essential to ensure that only one master device is transmitting data at a time to avoid bus contention and data corruption.
