AD5112BCPZ80-500R7 - Analog Devices

Description: Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer

Download AD5112BCPZ80-500R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

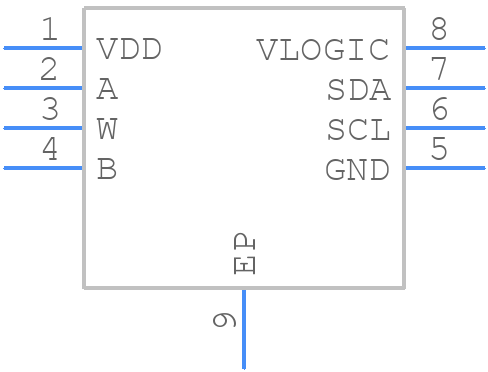

AD5112BCPZ80-500R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5112BCPZ80-500R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-2
click to zoom
3D Models
AD5112BCPZ80-500R7 - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-2
click to zoom

AD5112BCPZ80-500R7 Details

  • Manufacturer Part Number:

    AD5112BCPZ80-500R7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.949

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    80000 Ω

  • Width:

    2 mm

AD5112BCPZ80-500R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5112BCPZ80-500R7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The AD5112BCPZ80-500R7 requires a one-time calibration process to set the internal registers. This can be done using the ADI-provided software tools, such as the AD5112 Evaluation Software, which provides a graphical user interface to configure and calibrate the device. Additionally, the device's datasheet provides detailed information on the calibration process and register settings.
  • The AD5112BCPZ80-500R7 has an operating temperature range of -40°C to +125°C. While the device can operate within this range, its performance may be affected by temperature variations. For example, the device's output voltage accuracy and linearity may degrade at higher temperatures. It's essential to consider the operating temperature range and its impact on performance when designing with the AD5112BCPZ80-500R7.
  • The AD5112BCPZ80-500R7 is a high-reliability device that meets various industry standards and certifications, including AEC-Q100 for automotive applications and IEC 60730 for household appliances. Additionally, the device is designed to meet the requirements of safety-critical applications, such as ISO 26262 for functional safety. However, it's essential to consult the device's datasheet and relevant documentation to ensure compliance with specific industry standards and regulations.
  • Troubleshooting the AD5112BCPZ80-500R7 typically involves checking the device's power supply, clock signal, and communication interfaces. Ensure that the device is properly powered, and the clock signal is within the specified frequency range. For communication issues, verify that the serial interface is properly configured and that the device is responding to commands. The ADI-provided software tools and evaluation boards can also be used to debug and troubleshoot the device.
