AD5113BCPZ80-500R7 - Analog Devices

Description: ANALOG DEVICES - AD5113BCPZ80-500R7 - Non Volatile Digital Potentiometer, 80 kohm, Single, Up, Down, Linear, ± 8%, 2.3 V

Download AD5113BCPZ80-500R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

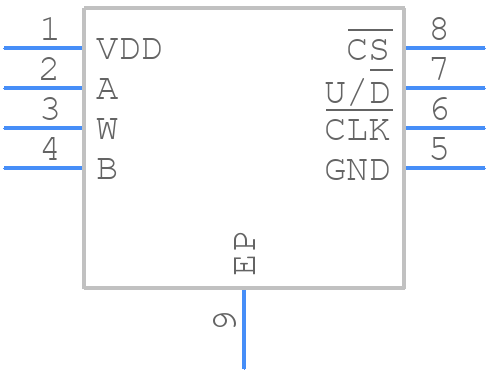

Symbol
AD5113BCPZ80-500R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5113BCPZ80-500R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10 [LFCSP_UD]
click to zoom
3D Models
AD5113BCPZ80-500R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10 [LFCSP_UD]
click to zoom

AD5113BCPZ80-500R7 Details

  • Manufacturer Part Number:

    AD5113BCPZ80-500R7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.954

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    2 X 2 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    80000 Ω

  • Width:

    2 mm

AD5113BCPZ80-500R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5113 involves keeping the digital and analog sections separate, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer board with a dedicated power plane and to place the device close to the power supply.
  • To ensure accurate and reliable digital-to-analog conversion, it's essential to follow proper layout and routing guidelines, use a stable and low-noise power supply, and minimize digital noise coupling to the analog section. Additionally, consider using a buffer amplifier or an op-amp to condition the output signal.
  • The AD5113 is rated for operation from -40°C to +125°C, but it's essential to note that the device's performance may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related considerations.
  • The AD5113 is a high-reliability device, but it's essential to consult the datasheet and relevant application notes to ensure it meets the specific requirements of your application. Additionally, consider performing thorough testing and validation to ensure the device meets your reliability and safety standards.
  • The AD5113 can be programmed using a microcontroller or FPGA via a serial interface (SPI or I2C). Consult the datasheet and relevant application notes for specific programming guidelines, and ensure that your programming sequence follows the recommended protocol.
