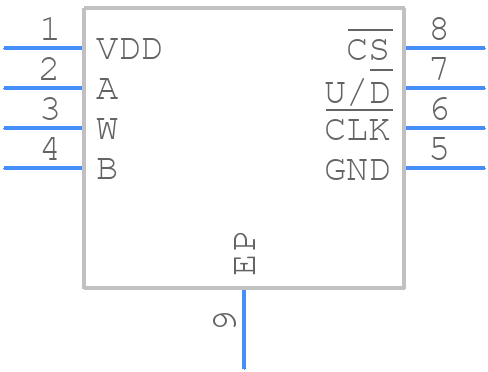

AD5113BCPZ80-RL7 - Analog Devices

AD5113BCPZ80-RL7 Details

• Manufacturer Part Number:

  AD5113BCPZ80-RL7

• Source Url Status Check Date:

  2013-05-01 14:56:09.954

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  CSP

• Package Description:

  2 X 2 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-8

• Pin Count:

  8

• Manufacturer Package Code:

  CP-8-10

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Bandwidth-Nom:

  0.2 kHz

• Control Interface:

  INCREMENT/DECREMENT

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Positions:

  64

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  8%

• Resistor Terminal Voltage-Max:

  5.5 V

• Seated Height-Max:

  0.65 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  35 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  80000 Ω

• Width:

  2 mm
