AD5116BCPZ5-500R7 - Analog Devices

Description: ANALOG DEVICES - AD5116BCPZ5-500R7 - Non Volatile Digital Potentiometer, 5 kohm, Single, Pushbutton, Linear, ± 8%, 2.3 V

Download AD5116BCPZ5-500R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

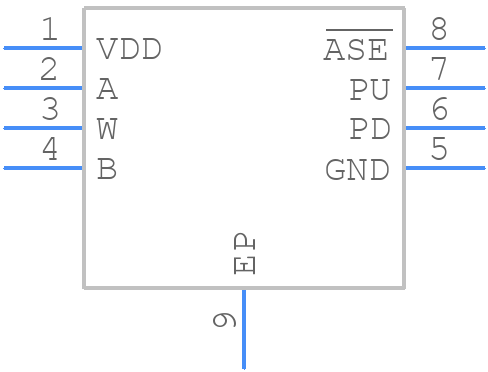

Symbol
AD5116BCPZ5-500R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5116BCPZ5-500R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10_1
click to zoom
3D Models
AD5116BCPZ5-500R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10_1
click to zoom

AD5116BCPZ5-500R7 Details

  • Manufacturer Part Number:

    AD5116BCPZ5-500R7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.965

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 2 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    4 kHz

  • Control Interface:

    PUSH-BUTTON

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    5000 Ω

  • Width:

    2 mm

AD5116BCPZ5-500R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5116BCPZ5-500R7 should include a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the power supply and use short, direct traces to minimize inductance and noise.
  • The AD5116BCPZ5-500R7 requires a one-time calibration process to set the internal voltage reference and gain. This can be done using the device's built-in calibration mode, which is accessed through the SPI interface. Refer to the datasheet and application notes for detailed calibration procedures and configuration guidelines.
  • The AD5116BCPZ5-500R7 is rated for operation from -40°C to +125°C. While the device can operate within this range, its performance may degrade at extreme temperatures. For example, the output voltage accuracy and linearity may be affected, and the device's power consumption may increase. It's essential to consider the operating temperature range when designing and testing your system.
  • To protect the AD5116BCPZ5-500R7 from EMI and RFI, use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to a solid ground plane, and adding EMI filters or ferrite beads to the power supply and signal lines. Additionally, ensure that the device is placed in a location that minimizes exposure to external interference sources.
  • The recommended power-up sequence for the AD5116BCPZ5-500R7 is to apply the analog power supply (VDDA) first, followed by the digital power supply (VDDD). This ensures that the device's internal voltage regulators are properly initialized and that the digital interface is powered up correctly. Refer to the datasheet for specific power-up sequence guidelines.
