AD5116BCPZ80-RL7 - Analog Devices

Description: Digital Potentiometer ICs 64tap,Single Chan DigiPOT,NVMPush Button

Download AD5116BCPZ80-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

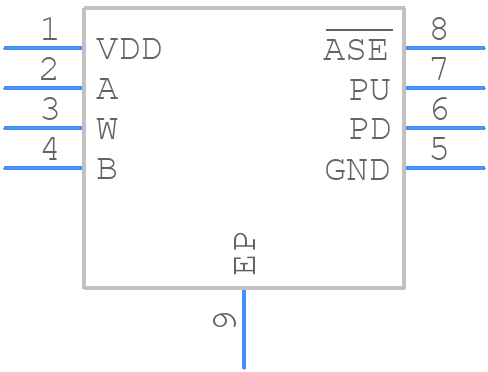

AD5116BCPZ80-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5116BCPZ80-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10 [LFCSP_UD]
click to zoom
3D Models
AD5116BCPZ80-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10 [LFCSP_UD]
click to zoom

AD5116BCPZ80-RL7 Details

  • Manufacturer Part Number:

    AD5116BCPZ80-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.967

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    2 X 2 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    PUSH-BUTTON

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    80000 Ω

  • Width:

    2 mm

AD5116BCPZ80-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD5116BCPZ80-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the digital lines. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling. A 4-layer PCB with a dedicated analog ground plane is also recommended.
  • The AD5116BCPZ80-RL7 does not require calibration during manufacturing. It is a digitally controlled potentiometer that stores its wiper position in non-volatile memory. The device is calibrated during production by Analog Devices Inc. and is ready to use out of the box.
  • The AD5116BCPZ80-RL7 has an operating temperature range of -40°C to +125°C. The device's performance may degrade at higher temperatures, with a typical temperature coefficient of ±50 ppm/°C for the resistance tolerance. It's essential to ensure the device operates within the recommended temperature range to maintain optimal performance.
  • The AD5116BCPZ80-RL7 is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. While it meets the requirements for many industrial and automotive applications, it may not meet the specific requirements for high-reliability or safety-critical applications. It's recommended to consult with Analog Devices Inc. or a qualified reliability engineer to determine the device's suitability for such applications.
  • To troubleshoot issues with the AD5116BCPZ80-RL7, start by verifying the device's power supply and clock signals. Check the digital interface for proper communication and ensure the device is properly configured. Use a logic analyzer or oscilloscope to monitor the digital signals and verify the wiper movement. If issues persist, consult the datasheet and application notes or contact Analog Devices Inc. support for further assistance.
