Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AD5122BRUZ10-RL7 - Analog Devices

Description: Dual Channel, 128-Position, SPI, Nonvolatile Digital Potentiometer

Download AD5122BRUZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

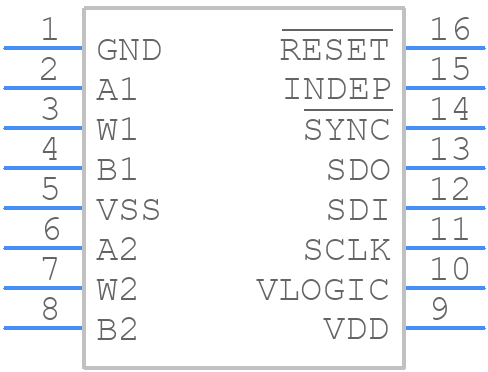

AD5122BRUZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

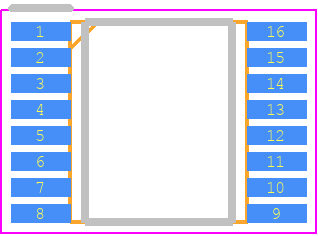

AD5122BRUZ10-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP*ss
click to zoom
3D Models
AD5122BRUZ10-RL7 - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP*ss
click to zoom

AD5122BRUZ10-RL7 Details

  • Manufacturer Part Number:

    AD5122BRUZ10-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.997

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    REST RESISTOR VALUES IS 10000OHM AND CONTROL INTERFACE IS INCREMENT/DECREMENT

  • Bandwidth-Nom:

    3 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Functions:

    2

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR/LOGARITHMIC

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    2.75 V

  • Resistor Terminal Voltage-Min:

    -2.25 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

AD5122BRUZ10-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5122BRUZ10-RL7 should minimize noise and parasitic inductance. Keep the digital and analog grounds separate, and use a solid ground plane to reduce noise. Place the device close to the analog signal sources, and use short, direct traces to connect the inputs and outputs. Avoid running digital signals near the analog signals.
  • To ensure accurate temperature measurement, make sure to calibrate the device according to the datasheet instructions. Also, ensure that the device is properly soldered and that the thermal pad is connected to a solid ground plane. Avoid exposing the device to extreme temperatures or thermal gradients during operation.
  • The recommended power-up sequence for the AD5122BRUZ10-RL7 is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
  • The AD5122BRUZ10-RL7's digital output data is in 2's complement format. To handle this data, you can use a microcontroller or FPGA to read the data and convert it to a more usable format, such as decimal or binary. You can also use a dedicated ADC interface IC to simplify the data handling process.
  • The maximum sampling rate of the AD5122BRUZ10-RL7 is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5122BRUZ10-RL7 Overview

Use the download button to access the AD5122BRUZ10-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD512, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD5122BRUZ10-RL7

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
