AD5123BCPZ100-RL7 - Analog Devices

Description: Quad Channel, 128-Position, I2C, Nonvolatile Digital Potentiometer

Download AD5123BCPZ100-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

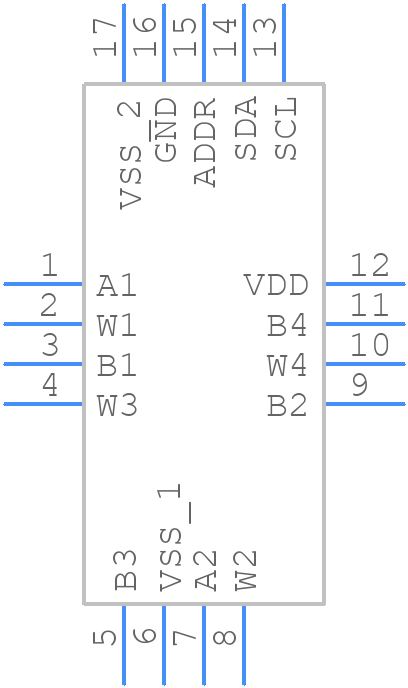

AD5123BCPZ100-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5123BCPZ100-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22
click to zoom
3D Models
AD5123BCPZ100-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22
click to zoom

AD5123BCPZ100-RL7 Details

  • Manufacturer Part Number:

    AD5123BCPZ100-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:10.017

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.43 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    2.75 V

  • Resistor Terminal Voltage-Min:

    -2.25 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

AD5123BCPZ100-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5123BCPZ100-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
  • To ensure accuracy, it's essential to follow the recommended layout and grounding guidelines, use a low-noise power supply, and minimize electromagnetic interference (EMI) and radio-frequency interference (RFI) in the system.
  • The AD5123BCPZ100-RL7 is rated for operation from -40°C to +125°C, but it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The AD5123BCPZ100-RL7 is designed to operate from a single 2.7 V to 5.5 V supply, but it's possible to use it with a different voltage supply with proper voltage regulation and level shifting, if necessary. However, the user should consult the datasheet and perform thorough testing to ensure compatibility.
  • To troubleshoot issues with the AD5123BCPZ100-RL7, start by verifying the power supply and clock signals, checking for proper grounding and layout, and using oscilloscopes or logic analyzers to monitor the device's inputs and outputs. Consult the datasheet and application notes for specific troubleshooting guidelines.
