AD5142WBCPZ10-RL7 - Analog Devices

Description: ► 10 kΩ and 100 kΩ resistance options ► Resistor tolerance: ±8% maximum ► Wiper current: ±6 mA ► Low temperature coefficient: 35 ppm/°C ► Wide bandwidth: 3 MHz ► Fast start-up time <75 µs ► Linear gain setting mode ► Single- and dual-supply operation ► Independent logic supply: 1.8 V to 5.5 V ► Wide operating temperature: −40°C to +125°C ► 3 mm × 3 mm package option ► AEC-Q100 qualified for automotive applications

Download AD5142WBCPZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

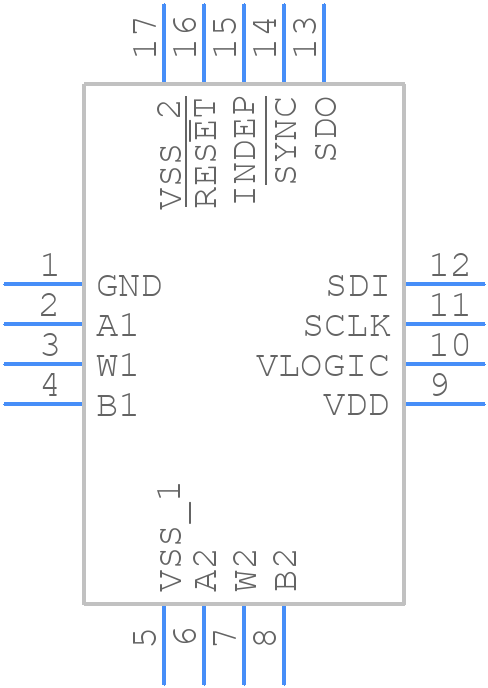

AD5142WBCPZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5142WBCPZ10-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead LFCSP*
click to zoom
3D Models
AD5142WBCPZ10-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead LFCSP*
click to zoom

AD5142WBCPZ10-RL7 Details

  • Manufacturer Part Number:

    AD5142WBCPZ10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    3 kHz

  • Control Interface:

    4-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    2.75 V

  • Resistor Terminal Voltage-Min:

    2.25 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5142WBCPZ10-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5142WBCPZ involves keeping the digital and analog sections separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure accurate voltage output from the AD5142WBCPZ, it is essential to use a high-accuracy external reference voltage, keep the input voltage noise low, and use a low-noise power supply. Additionally, the device's output voltage should be buffered with an op-amp to minimize load regulation errors.
  • The maximum output current of the AD5142WBCPZ is 5 mA. However, it is recommended to limit the output current to 2 mA to ensure accurate voltage output and to prevent overheating.
  • The AD5142WBCPZ can be programmed using a microcontroller through its SPI-compatible interface. The microcontroller should send the desired voltage output code to the AD5142WBCPZ, along with the necessary control bits to update the output voltage. The device's datasheet provides a detailed description of the programming sequence.
  • The AD5142WBCPZ has a power-on reset feature that initializes the device to a default state after power-up. The output voltage is set to 0 V, and the device's internal registers are reset to their default values. This feature ensures that the device starts up in a known state after power-up.
