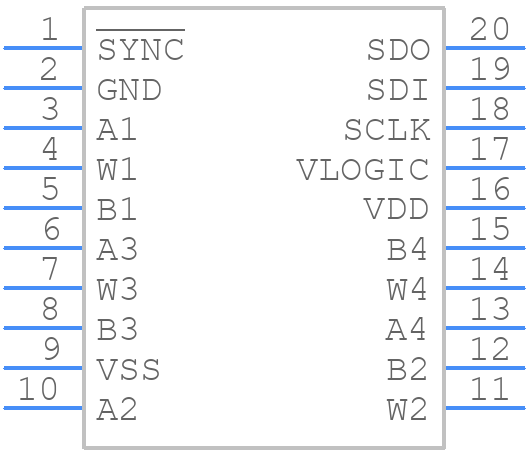

AD5144TRUZ10-EP - Analog Devices

AD5144TRUZ10-EP Details

• Manufacturer Part Number:

  AD5144TRUZ10-EP

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  RU-20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2019-10-18

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Bandwidth-Nom:

  3 kHz

• Control Interface:

  SERIAL PERIPHERAL INTERFACE

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G20

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -2.5 V

• Number of Functions:

  4

• Number of Positions:

  256

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSOP20,.25,26

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  8%

• Resistor Terminal Voltage-Max:

  2.75 V

• Resistor Terminal Voltage-Min:

  -2.25 V

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  0.0055 mA

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Temperature Coefficient-Nom:

  35 ppm/°C

• Temperature Grade:

  MILITARY

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Total Resistance-Nom:

  10000 Ω

• Width:

  4.4 mm
