AD5162BRMZ10-RL7 - Analog Devices

Description: ANALOG DEVICES - AD5162BRMZ10-RL7 - DIGITAL POT, VOLATILE, 10 KOHM, MSOP-10

Download AD5162BRMZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

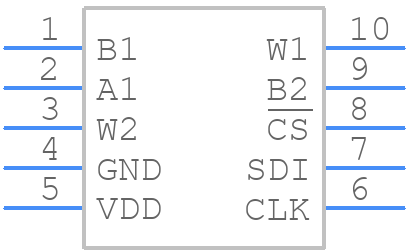

Symbol
AD5162BRMZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5162BRMZ10-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5162BRMZ10-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5162BRMZ10-RL7 Details

  • Manufacturer Part Number:

    AD5162BRMZ10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.90 MM, ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM 5 V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.6 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5162BRMZ10-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5162BRMZ10-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves writing a specific code to the device's calibration register. It's also important to ensure that the device is operated within the recommended temperature range and that the power supply is stable and noise-free.
  • The recommended power-up sequence for the AD5162BRMZ10-RL7 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and finally the logic input signals. This sequence helps prevent damage or malfunction due to voltage differences between the analog and digital power domains.
  • To troubleshoot issues with the AD5162BRMZ10-RL7, start by verifying the power supply voltages and ensuring that the device is properly configured. Check the digital communication protocol and verify that the correct commands are being sent to the device. Use a logic analyzer or oscilloscope to debug digital communication issues, and use a multimeter or oscilloscope to measure the output voltages and verify that they are within the expected range.
  • The AD5162BRMZ10-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance and ensure efficient heat dissipation.
