AD5162BRMZ2.5-RL7 - Analog Devices

Description: 2.5kOhmDigital Potentiometer 256POS Volatile Linear 10-Pin MSOP T/R

Download AD5162BRMZ2.5-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

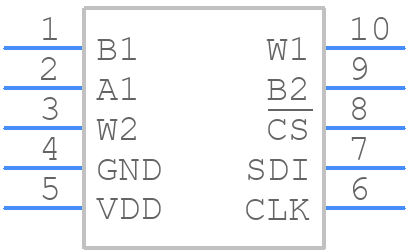

Symbol
AD5162BRMZ2.5-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5162BRMZ2.5-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5162BRMZ2.5-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5162BRMZ2.5-RL7 Details

  • Manufacturer Part Number:

    AD5162BRMZ2.5-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.90 MM, ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM 5 V NOMINAL SUPPLY

  • Bandwidth-Nom:

    4.8 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    55%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    2500 Ω

  • Width:

    3 mm

AD5162BRMZ2.5-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5162BRMZ2.5-RL7 involves keeping the device away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the accuracy and stability of the AD5162BRMZ2.5-RL7, it's essential to follow proper PCB design and layout guidelines, use a stable power supply, and minimize noise and interference. Additionally, the device should be operated within its specified temperature range, and the input voltage should be within the recommended range.
  • The recommended power-up sequence for the AD5162BRMZ2.5-RL7 involves applying the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal circuitry is properly initialized and reduces the risk of latch-up or damage to the device.
  • The AD5162BRMZ2.5-RL7 has a maximum junction temperature of 150°C. To ensure proper thermal management, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and minimize the ambient temperature. Additionally, the device should be operated within its specified power dissipation limits.
  • The recommended input voltage range for the AD5162BRMZ2.5-RL7 is 2.5V to 5.5V. Operating the device outside this range may affect its performance, accuracy, and reliability.
