AD5162WBRMZ100-RL7 - Analog Devices

Description: Digital Potentiometer

Download AD5162WBRMZ100-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

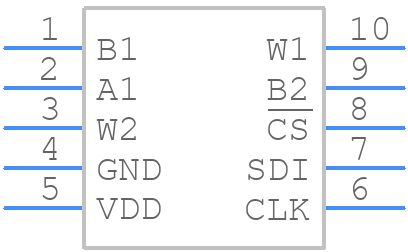

Symbol
AD5162WBRMZ100-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5162WBRMZ100-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD5162WBRMZ100-RL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD5162WBRMZ100-RL7 Details

  • Manufacturer Part Number:

    AD5162WBRMZ100-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.90 MM, ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM 5 V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.04 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

AD5162WBRMZ100-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5162WBRMZ100-RL7 should minimize noise and parasitic inductance. Keep the digital and analog grounds separate, use a solid ground plane, and place decoupling capacitors close to the device. Also, ensure that the digital and analog signal traces are separated and shielded.
  • To ensure accuracy, use a high-precision voltage reference, and ensure that the supply voltage is within the recommended range. Also, calibrate the device during manufacturing or at power-up using the built-in calibration feature. Additionally, consider using a temperature compensation scheme to account for temperature-related drift.
  • The maximum frequency of the I2C interface is 400 kHz. To ensure reliable communication, use a pull-up resistor on the SCL and SDA lines, and ensure that the I2C bus is properly terminated. Also, use a repeater or buffer if the bus is long or has multiple devices.
  • The POR and BOR features ensure that the device resets to a known state during power-up or brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended range. Also, use an external reset circuit or a supervisory IC to monitor the power supply and generate a reset signal if necessary.
  • The recommended method for programming the AD5162WBRMZ100-RL7 is through the I2C interface using a programming adapter or a dedicated programming tool. Use a programming software or script to write the desired configuration and calibration data to the device.
