AD5170BRMZ10 - Analog Devices

Description: ANALOG DEVICES - AD5170BRMZ10 - Non Volatile Digital Potentiometer, 10 kohm, Single, I2C, Linear, ± 20%, 2.7 V

Download AD5170BRMZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

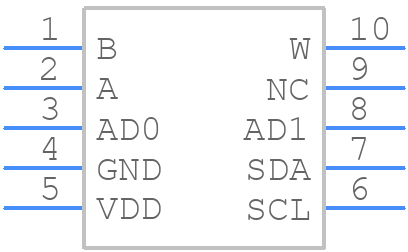

AD5170BRMZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5170BRMZ10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5170BRMZ10 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5170BRMZ10 Details

  • Manufacturer Part Number:

    AD5170BRMZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.6 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5170BRMZ10 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5170 is to apply VDD first, followed by VSS, and then the digital interface signals (SDA, SCL, etc.). This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • The AD5170 has an internal calibration circuit that is enabled by default after power-up. However, it's recommended to perform an explicit calibration cycle by writing the calibration command (0x04) to the device after power-up to ensure that the internal DAC is properly calibrated and accurate.
  • The AD5170's output is capable of driving up to 1nF of capacitance. Exceeding this limit may affect the device's stability and accuracy. If a larger capacitance is required, an external buffer amplifier may be necessary.
  • Yes, the AD5170 can be used in a ratiometric configuration, where the output voltage is proportional to the supply voltage (VDD). This can be useful in applications where the supply voltage is variable or noisy. However, it's essential to ensure that the supply voltage is within the recommended operating range to maintain accuracy and linearity.
  • The AD5170 has a power-down mode that can be enabled by writing the power-down command (0x02) to the device. In this mode, the device's power consumption is significantly reduced. However, it's essential to ensure that the device is properly powered down and powered up again to avoid any potential latch-up or damage. It's also recommended to re-calibrate the device after power-up from power-down mode.
