AD5171BRJZ100-R2 - Analog Devices

Description: AD5171BRJZ100-R2, Digital Potentiometer 100kΩ 64-Position Linear I2C, Serial-2 Wire 8-Pin SOT-23

Download AD5171BRJZ100-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

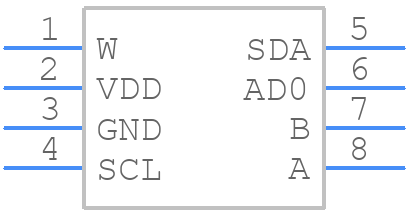

AD5171BRJZ100-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5171BRJZ100-R2 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)_2022_1-1
click to zoom
3D Models
AD5171BRJZ100-R2 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)_2022_1-1
click to zoom

AD5171BRJZ100-R2 Details

  • Manufacturer Part Number:

    AD5171BRJZ100-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MO-178-BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.06 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    1.6 mm

AD5171BRJZ100-R2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • The AD5171BRJZ100-R2 is a digitally controlled potentiometer, and it does not require calibration. The device is factory-calibrated and the resistance values are stored in an on-chip EEPROM. However, it is recommended to perform a soft reset (by setting the RST pin low) after power-up to ensure that the device is in a known state.
  • The maximum frequency of the clock signal that can be applied to the AD5171BRJZ100-R2 is 1 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • Yes, the AD5171BRJZ100-R2 can be used in a ratiometric configuration. The device has a high degree of linearity and accuracy, making it suitable for ratiometric applications. However, it is recommended to consult the datasheet and application notes for specific guidance on implementing ratiometric configurations.
  • The AD5171BRJZ100-R2 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Additionally, it is recommended to use a series resistor and/or TVS diode on the digital inputs to provide additional ESD protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5171BRJZ100-R2 Overview

Use the download button to access the AD5171BRJZ100-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD517, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
