AD5171BRJZ5-R7 - Analog Devices

Description: Digital Potentiometer 5kOhm 64POS Automotive 8-Pin SOT-23 T/R

Download AD5171BRJZ5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

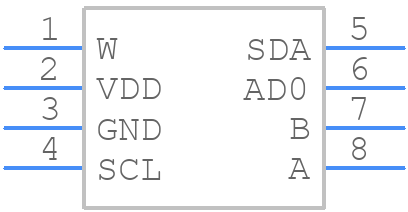

AD5171BRJZ5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5171BRJZ5-R7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom
3D Models
AD5171BRJZ5-R7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)--
click to zoom

AD5171BRJZ5-R7 Details

  • Manufacturer Part Number:

    AD5171BRJZ5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MO-178-BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    1.5 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    5000 Ω

  • Width:

    1.6 mm

AD5171BRJZ5-R7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • The AD5171BRJZ5-R7 is a digitally controlled potentiometer, and it does not require calibration. The device is factory-calibrated and the resistance values are stored in an on-chip EEPROM. However, it is recommended to perform a soft reset (by setting the RST pin low) after power-up to ensure that the device is in a known state.
  • The maximum frequency of the clock signal that can be applied to the AD5171BRJZ5-R7 is 1 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • The AD5171BRJZ5-R7 is rated for operation over the industrial temperature range of -40°C to +85°C. However, the device's performance and accuracy may degrade at higher temperatures. It is recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • The AD5171BRJZ5-R7 is a sensitive device and can be damaged by electrostatic discharge (ESD). It is recommended to handle the device with proper ESD precautions, such as using an ESD wrist strap or mat, and to ensure that the device is properly grounded during handling and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5171BRJZ5-R7 Overview

Use the download button to access the AD5171BRJZ5-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD517, or try a keyword search, such as Digital Potentiometers
