AD5173BRMZ10-RL7 - Analog Devices

Description: 256-Position, One-Time Programmable, Dual Channel, I2C Digital Potentiometer

Download AD5173BRMZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

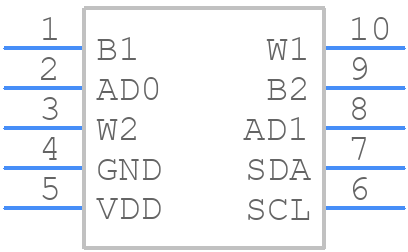

Symbol
AD5173BRMZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5173BRMZ10-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5173BRMZ10-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5173BRMZ10-RL7 Details

  • Manufacturer Part Number:

    AD5173BRMZ10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.6 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5173BRMZ10-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5173 is to apply VDD first, followed by VSS, and then the digital interface signals (SDA, SCL, etc.). This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • To ensure accurate resistance settings with the AD5173, it is recommended to use a high-precision voltage reference, minimize noise and interference on the digital interface, and use a stable and accurate clock signal. Additionally, it is important to follow the recommended programming sequence and timing to avoid any potential errors or misinterpretation of the resistance settings.
  • The maximum operating temperature range for the AD5173 is -40°C to +125°C. However, it is recommended to operate the device within the specified temperature range for the specific package type (e.g., -40°C to +85°C for the RMZ package) to ensure optimal performance and reliability.
  • The AD5173 is an ESD-sensitive device, and it is recommended to handle it with care to avoid any potential damage. This includes using ESD-protective equipment, such as wrist straps and mats, and following proper handling and storage procedures to minimize the risk of ESD damage.
  • The recommended layout and routing for the AD5173 involves keeping the digital and analog signals separate, using a solid ground plane, and minimizing the length and impedance of the signal traces. It is also recommended to use a low-impedance power supply and to decouple the power supply lines with capacitors to minimize noise and interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5173BRMZ10-RL7 Overview

Use the download button to access the AD5173BRMZ10-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD517, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
