AD5173BRMZ2.5-RL7 - Analog Devices

Description: 256-Position, One-Time Programmable, Dual Channel, I2C Digital Potentiometer

Download AD5173BRMZ2.5-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

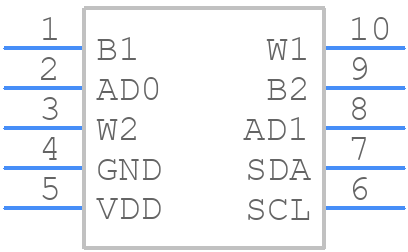

Symbol
AD5173BRMZ2.5-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5173BRMZ2.5-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
AD5173BRMZ2.5-RL7 - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

AD5173BRMZ2.5-RL7 Details

  • Manufacturer Part Number:

    AD5173BRMZ2.5-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    4.8 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    55%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    2500 Ω

  • Width:

    3 mm

AD5173BRMZ2.5-RL7 Frequently Asked Questions (FAQs)

  • A good layout and PCB design is crucial for optimal performance. Ensure that the digital and analog grounds are separated, and the digital lines are kept away from the analog lines. Use a solid ground plane, and keep the signal traces short and direct. Also, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • Calibration involves setting the zero-scale and full-scale output voltages. Use a precision voltage source to set the zero-scale output voltage, and then use a precision resistor to set the full-scale output voltage. Refer to the datasheet for the specific calibration procedure and equations.
  • The AD5173BRMZ2.5-RL7 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
  • The AD5173BRMZ2.5-RL7 has a standard SPI interface. Connect the SCLK, SDI, and SDO pins to the corresponding pins on the microcontroller. Use a pull-up resistor on the SDO pin, and ensure that the microcontroller's SPI clock frequency is within the recommended range of 50 kHz to 50 MHz.
  • The AD5173BRMZ2.5-RL7 has a power-on reset (POR) circuit that initializes the device to a known state after power-up. The POR circuit ensures that the device's output voltage is set to the midpoint of the output range (2.5 V) after power-up.
