AD5173BRMZ2.5 - Analog Devices

Description: AD5173BRMZ2.5, Digital Potentiometer 2.5kΩ 256-Position 2-channel Serial-2 Wire, Serial-I2C 10-Pin MSOP

Download AD5173BRMZ2.5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

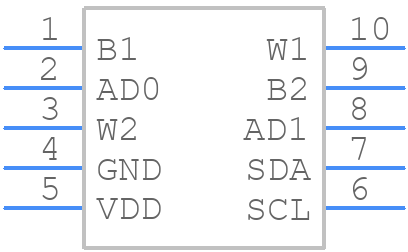

Symbol
AD5173BRMZ2.5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5173BRMZ2.5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 10
click to zoom
3D Models
AD5173BRMZ2.5 - Analog Devices - 3D model - Small Outline Packages - MSOP 10
click to zoom

AD5173BRMZ2.5 Details

  • Manufacturer Part Number:

    AD5173BRMZ2.5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    4.8 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    55%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    2500 Ω

  • Width:

    3 mm

AD5173BRMZ2.5 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5173 is to apply VDD first, followed by VSS, and then the logic inputs. This ensures that the internal circuitry is properly biased and that the device operates correctly.
  • The AD5173 is a digitally controlled potentiometer, and it does not require calibration. The device is factory-calibrated and the resistance values are stored in an on-chip EEPROM. However, it is recommended to perform a soft reset (by pulling the RST pin low) after power-up to ensure that the device is in a known state.
  • The maximum frequency of the clock signal that can be applied to the AD5173 is 1 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • Yes, the AD5173 can be used in a ratiometric configuration. The device has a separate terminal for the wiper (RW) and the B terminal (RB), which allows for ratiometric operation. However, it is recommended to consult the datasheet and application notes for proper configuration and layout guidelines.
  • The thermal resistance of the AD5173 package (MSOP-10) is typically around 250°C/W (junction-to-ambient) and 125°C/W (junction-to-case). This information is usually available in the package thermal characteristics section of the datasheet or in the manufacturer's documentation.
