AD5174BRMZ-10-RL7 - Analog Devices

Description: Digital Potentiometer 10k Ohm 1 Circuit 1024 Taps SPI Interface 10-MSOP

Download AD5174BRMZ-10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

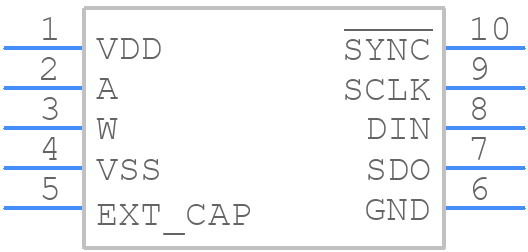

AD5174BRMZ-10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5174BRMZ-10-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead MSOP
click to zoom
3D Models
AD5174BRMZ-10-RL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead MSOP
click to zoom

AD5174BRMZ-10-RL7 Details

  • Manufacturer Part Number:

    AD5174BRMZ-10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    NON VOLATILE MEMORY

  • Bandwidth-Nom:

    0.7 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    1024

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    15%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -2.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5174BRMZ-10-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the VREF pin.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure, use a high-quality voltage reference, and maintain a stable power supply. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the calibration accordingly.
  • The recommended power-up sequence is to apply the power supply voltage (VDD) first, followed by the voltage reference (VREF), and then the digital control signals. This sequence helps prevent damage or malfunction due to incorrect voltage sequencing.
  • To prevent ESD damage, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag. During assembly, use an ESD-protected workstation and follow proper handling procedures.
  • The recommended method is to use a 3-wire serial interface (SPI) to program the device. Use a microcontroller or FPGA to generate the clock, data, and chip select signals, and ensure that the interface is properly terminated and buffered to prevent signal degradation.
