AD5203ARZ10 - Analog Devices

Description: AD5203ARZ10, Digital Potentiometer 10kΩ 64-Position Linear 4-channel Serial-3 Wire, Serial-SPI 24-Pin SOIC W

Download AD5203ARZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

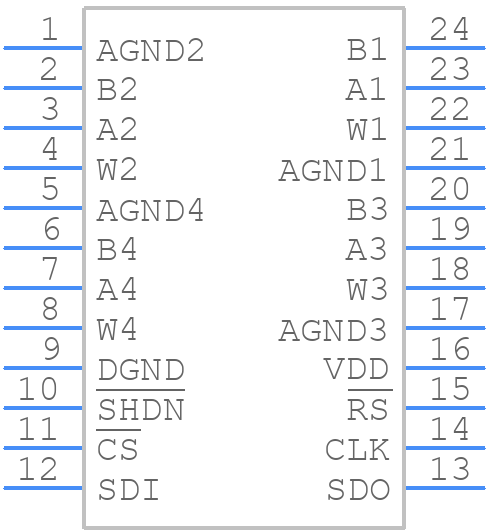

AD5203ARZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5203ARZ10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOL-24
click to zoom
3D Models
AD5203ARZ10 - Analog Devices - 3D model - Small Outline Packages - SOL-24
click to zoom

AD5203ARZ10 Details

  • Manufacturer Part Number:

    AD5203ARZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    REST 3 RESISTOR ARRAY VALUES ARE : 10000OHMS

  • Bandwidth-Nom:

    0.6 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    7.5 mm

AD5203ARZ10 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5203ARZ10 involves keeping the digital and analog signals separate, using a solid ground plane, and minimizing the length of the traces between the device and the resistors. It's also important to follow the guidelines for decoupling capacitors and to use a low-ESR capacitor for the VDD pin.
  • To ensure the accuracy and linearity of the AD5203ARZ10, it's essential to use high-precision resistors with low temperature coefficients, maintain a stable power supply, and minimize noise and interference. Additionally, the device should be operated within its specified temperature range, and the input signals should be within the recommended voltage range.
  • The AD5203ARZ10 is a digital potentiometer, and its maximum frequency of operation is limited by the settling time of the internal DAC and the resistors. The device can operate at frequencies up to 50 kHz, but the actual frequency limit may be lower depending on the specific application and the required settling time.
  • The AD5203ARZ10 is specified to operate from -40°C to +125°C, but its performance may degrade at high temperatures. It's essential to follow the recommended operating conditions and to ensure that the device is properly cooled to maintain its accuracy and reliability.
  • The AD5203ARZ10 can be programmed using a 2-wire serial interface (I2C-compatible). The device has a 7-bit address, and the programming sequence involves sending the address, the command, and the data to the device. The datasheet provides a detailed description of the programming sequence and the available commands.
