AD5206BN10 - Analog Devices

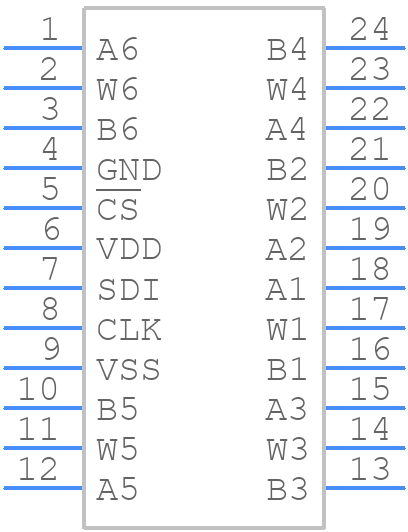

AD5206BN10 Details

• Manufacturer Part Number:

  AD5206BN10

• Source Url Status Check Date:

  2013-05-01 14:56:10.633

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MS-001, DIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  N-24-1

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  CAN ALSO OPERATE FROM +/-2.3V TO +/-2.7V SUPPLY

• Bandwidth-Nom:

  0.721 kHz

• Control Interface:

  3-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e0

• Length:

  31.75 mm

• Negative Supply Voltage-Nom:

  -2.5 V

• Number of Functions:

  6

• Number of Positions:

  256

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  SDIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  30%

• Resistor Terminal Voltage-Max:

  2.7 V

• Resistor Terminal Voltage-Min:

  -2.3 V

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  700 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Resistance-Nom:

  10000 Ω

• Width:

  7.62 mm
