AD5206BR50 - Analog Devices

Description: IC DGTL POT 50KOHM 256TAP 24SOIC

Download AD5206BR50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

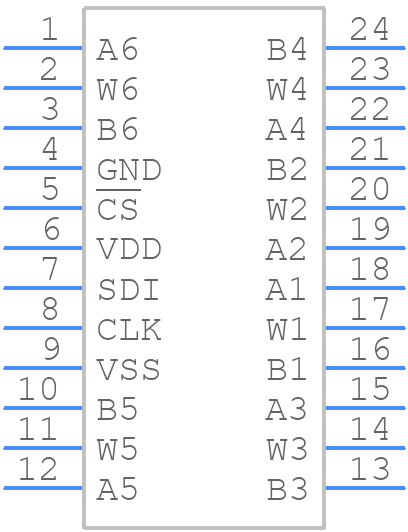

AD5206BR50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5206BR50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD5206BR50 - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD5206BR50 Details

  • Manufacturer Part Number:

    AD5206BR50

  • Source Url Status Check Date:

    2013-05-01 14:56:10.635

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE FROM +/-2.3V TO +/-2.7V SUPPLY

  • Bandwidth-Nom:

    0.137 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Functions:

    6

  • Number of Positions:

    256

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    2.7 V

  • Resistor Terminal Voltage-Min:

    -2.3 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    7.5 mm

AD5206BR50 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5206BR50 involves keeping the digital and analog signals separate, using a solid ground plane, and minimizing the length of the traces between the device and the resistors. It's also important to follow the guidelines for decoupling capacitors and to use a low-impedance power supply.
  • To ensure the accuracy and linearity of the AD5206BR50, it's essential to use high-precision resistors, maintain a stable power supply, and minimize noise and interference. Additionally, the device should be operated within its specified temperature range, and the input signals should be within the recommended voltage range.
  • The maximum frequency of operation for the AD5206BR50 is typically limited by the settling time of the internal amplifier and the resistance value of the external resistors. In general, the device can operate up to 100 kHz, but this may vary depending on the specific application and requirements.
  • The AD5206BR50 can be programmed using a microcontroller through a serial interface such as SPI or I2C. The microcontroller sends digital commands to the device to set the desired resistance value, and the device responds by adjusting the resistance of the internal resistors accordingly.
  • The power consumption of the AD5206BR50 depends on the operating frequency, supply voltage, and resistance value. Typically, the device consumes around 1.5 mA of current when operating at 5 V and 100 kHz. However, this may vary depending on the specific application and requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5206BR50 Overview

Use the download button to access the AD5206BR50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD520, or try a keyword search, such as Digital Potentiometers
