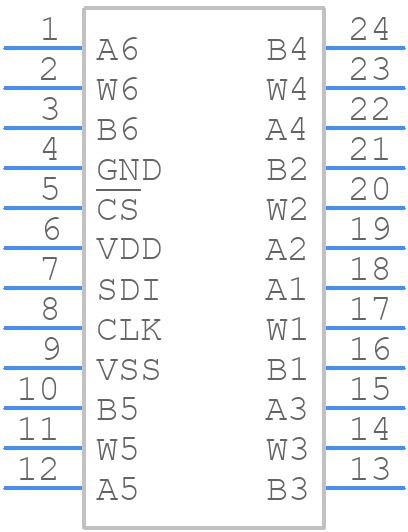

AD5206BRZ100 - Analog Devices

AD5206BRZ100 Details

• Manufacturer Part Number:

  AD5206BRZ100

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  SOIC-24

• Pin Count:

  24

• Manufacturer Package Code:

  RW-24

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Bandwidth-Nom:

  0.069 kHz

• Control Interface:

  3-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  15.4 mm

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -2.5 V

• Number of Functions:

  6

• Number of Positions:

  256

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  30%

• Resistor Terminal Voltage-Max:

  2.7 V

• Resistor Terminal Voltage-Min:

  -2.3 V

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Temperature Coefficient-Nom:

  700 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  100000 Ω

• Width:

  7.5 mm
