AD5220BRMZ10 - Analog Devices

Description: AD5220BRMZ10, Digital Potentiometer 10kΩ 128-Position Serial-3 Wire 8-Pin MSOP

Download AD5220BRMZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

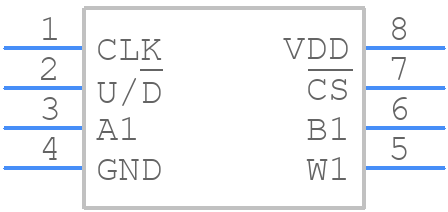

Symbol
AD5220BRMZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5220BRMZ10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP(RM-8)
click to zoom
3D Models
AD5220BRMZ10 - Analog Devices - 3D model - Small Outline Packages - MSOP(RM-8)
click to zoom

AD5220BRMZ10 Details

  • Manufacturer Part Number:

    AD5220BRMZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Bandwidth-Nom:

    0.65 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    800 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

AD5220BRMZ10 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD5220BRMZ10 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the digital and analog sections. It's also recommended to use a 4-layer PCB with a dedicated analog ground layer.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a thermocouple or RTD sensor with a high-accuracy amplifier, and ensure proper thermal coupling between the sensor and the AD5220BRMZ10.
  • The maximum clock frequency for the AD5220BRMZ10's SPI interface is 2 MHz. However, it's recommended to operate at a lower frequency (e.g., 100 kHz to 500 kHz) to ensure reliable data transfer and minimize noise susceptibility.
  • The AD5220BRMZ10 is designed to operate from a 2.7V to 5.5V supply voltage. However, it's recommended to use a 3.3V or 5V supply voltage with proper voltage regulation to ensure optimal performance and minimize power consumption.
  • The AD5220BRMZ10 has a built-in POR and BOR circuitry. To handle these features, ensure that the power supply voltage ramps up slowly (e.g., 10 ms to 100 ms) during power-on, and use a capacitor (e.g., 10 nF to 100 nF) on the VCC pin to filter out noise and voltage transients.
