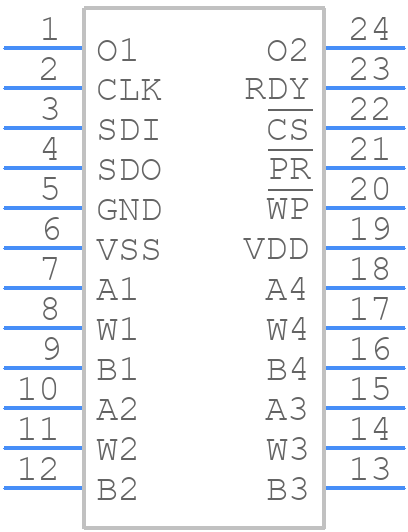

AD5233BRUZ10 - Analog Devices

AD5233BRUZ10 Details

• Manufacturer Part Number:

  AD5233BRUZ10

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  LEAD FREE, MO-153AD, TSSOP-24

• Pin Count:

  24

• Manufacturer Package Code:

  RU-24

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  LINEAR OR LOG TAPER SETTINGS; NONVOLATILE MEMORY; CAN ALSO OPERATE FROM +/-2.25V TO +/-2.75V SUPPLY

• Bandwidth-Nom:

  0.63 kHz

• Control Interface:

  3-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Positions:

  64

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LOGARITHMIC

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  5 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  600 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  10000 Ω

• Width:

  4.4 mm
