AD5241BRZ10-RL7 - Analog Devices

Description: Digital Potentiometer 10kOhm 256POS Volatile 14-Pin SOIC N T/R

Download AD5241BRZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

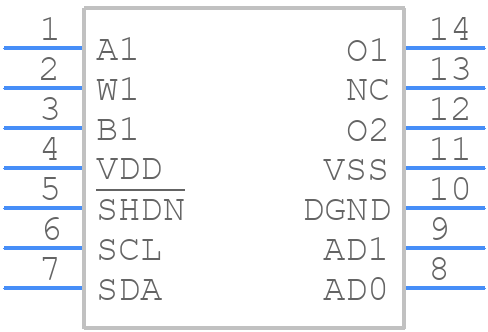

AD5241BRZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5241BRZ10-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)-1
click to zoom
3D Models
AD5241BRZ10-RL7 - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)-1
click to zoom

AD5241BRZ10-RL7 Details

  • Manufacturer Part Number:

    AD5241BRZ10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.65 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    2.7 V

  • Resistor Terminal Voltage-Min:

    -2.3 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    30 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3.9 mm

AD5241BRZ10-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5241BRZ10-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accuracy, it's essential to follow the recommended calibration procedure outlined in the datasheet. This involves writing a specific code to the device to calibrate the internal resistor network. Additionally, it's crucial to use a high-accuracy external reference voltage and to minimize noise and interference in the system.
  • The AD5241BRZ10-RL7 is a digital potentiometer, and as such, it does not have a maximum operating frequency in the classical sense. However, the device can respond to changes in the input code at a rate of up to 100 kHz. Faster changes may result in incomplete settling of the output resistance.
  • The AD5241BRZ10-RL7 is rated for operation from -40°C to +125°C. However, the device's accuracy and linearity may degrade at higher temperatures. It's essential to consult the datasheet and perform thorough testing to ensure the device meets the specific requirements of your application in high-temperature environments.
  • The AD5241BRZ10-RL7 communicates via a standard SPI interface. To interface the device with a microcontroller, connect the SCLK, SDI, and SDO pins to the corresponding pins on the microcontroller. Ensure that the microcontroller's SPI interface is configured correctly, and use a suitable communication protocol to send commands and data to the AD5241BRZ10-RL7.
