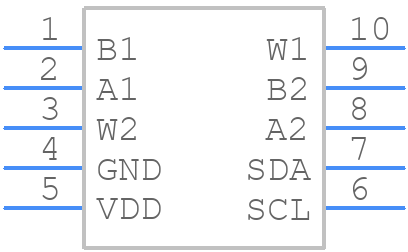

AD5243BRM2.5 - Analog Devices

AD5243BRM2.5 Details

• Manufacturer Part Number:

  AD5243BRM2.5

• Source Url Status Check Date:

  2013-05-01 14:56:11.03

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  3 X 4.90 MM, MO-187BA, MSOP-10

• Pin Count:

  10

• Manufacturer Package Code:

  RM-10

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  IT ALSO OPERATES AT 5 V SUPPLY

• Bandwidth-Nom:

  4.8 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e0

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Positions:

  256

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  55%

• Resistor Terminal Voltage-Max:

  5.5 V

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Temperature Coefficient-Nom:

  35 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Total Resistance-Nom:

  2500 Ω

• Width:

  3 mm
