AD5245BRJZ100-RL7 - Analog Devices

Description: ANALOG DEVICES - AD5245BRJZ100-RL7 - Volatile Digital Potentiometer, 100 kohm, Single, I2C, Linear, ± 30%, 2.7 V

Download AD5245BRJZ100-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

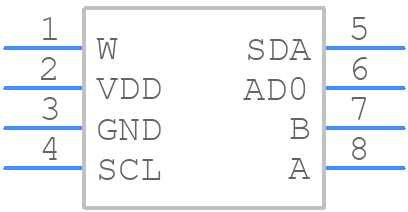

Symbol
AD5245BRJZ100-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5245BRJZ100-RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)
click to zoom
3D Models
AD5245BRJZ100-RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)
click to zoom

AD5245BRJZ100-RL7 Details

  • Manufacturer Part Number:

    AD5245BRJZ100-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2.90 X 3 MM, LEAD FREE, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.04 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    45 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    1.6 mm

AD5245BRJZ100-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5245BRJZ100-RL7 should include a solid ground plane, separate analog and digital grounds, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the analog signal sources and use short, direct traces to minimize noise pickup.
  • To ensure accuracy, it's essential to follow proper calibration procedures, use a high-quality voltage reference, and minimize noise and interference in the system. Additionally, the device should be operated within its specified temperature range, and the input signals should be properly filtered and buffered.
  • The recommended power-up sequence for the AD5245BRJZ100-RL7 is to first apply the analog supply voltage (VCC), followed by the digital supply voltage (VDD), and finally the logic input signals. This sequence helps prevent damage or malfunction due to incorrect power-up conditions.
  • To troubleshoot issues with the AD5245BRJZ100-RL7, start by verifying the power supply voltages, checking for proper device configuration and programming, and ensuring that the input signals are within the specified ranges. Use oscilloscopes or logic analyzers to monitor the device's output and digital communication signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The AD5245BRJZ100-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use thermal interface materials, and maintain a safe distance from other heat sources. Additionally, the device should be operated within its specified temperature range, and thermal simulations can be performed to optimize the system's thermal design.
