AD5245BRJZ50-RL7 - Analog Devices

Description: ANALOG DEVICES - AD5245BRJZ50-RL7 - Volatile Digital Potentiometer, 50 kohm, Single, I2C, Linear, ± 30%, 2.7 V

Download AD5245BRJZ50-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

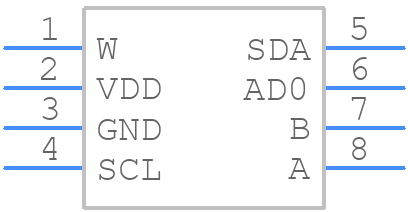

Symbol
AD5245BRJZ50-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5245BRJZ50-RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8_2022
click to zoom
3D Models
AD5245BRJZ50-RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8_2022
click to zoom

AD5245BRJZ50-RL7 Details

  • Manufacturer Part Number:

    AD5245BRJZ50-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2.90 X 3 MM, LEAD FREE, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.1 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    45 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    1.6 mm

AD5245BRJZ50-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5245BRJZ50-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure the accuracy of the AD5245BRJZ50-RL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The recommended power-up sequence for the AD5245BRJZ50-RL7 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and then the logic inputs. This sequence helps prevent latch-up and ensures proper device operation.
  • The AD5245BRJZ50-RL7 can source or sink up to 25mA of current. To handle the output current capability, it's recommended to use a buffer amplifier or an op-amp to increase the output current drive capability, if necessary. Additionally, the output voltage should be monitored to prevent overcurrent conditions.
  • The AD5245BRJZ50-RL7 has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To manage thermal performance, it's recommended to provide adequate airflow, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5245BRJZ50-RL7 Overview

Use the download button to access the AD5245BRJZ50-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD524, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
