AD5246BKSZ10-RL7 - Analog Devices

Description: AD5246BKSZ10-RL7, Digital Potentiometer 10kΩ 128-Position Serial-2 Wire, Serial-I2C 6-Pin SC-70

Download AD5246BKSZ10-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

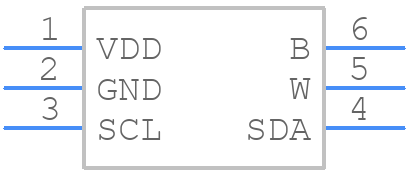

Symbol
AD5246BKSZ10-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5246BKSZ10-RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_1
click to zoom
3D Models
AD5246BKSZ10-RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_1
click to zoom

AD5246BKSZ10-RL7 Details

  • Manufacturer Part Number:

    AD5246BKSZ10-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    2 X 2.10 MM, ROHS COMPLIANT, MO-203AB, SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.6 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    45 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    1.25 mm

AD5246BKSZ10-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5246BKSZ10-RL7 should include a solid ground plane, separate analog and digital grounds, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the analog signal sources and use short, direct traces to minimize noise pickup.
  • To ensure accuracy, it's essential to follow proper layout and grounding techniques, use a stable and low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, calibrate the device according to the datasheet recommendations and use a high-quality external reference voltage if required.
  • The AD5246BKSZ10-RL7 is rated for operation from -40°C to +125°C. Temperature changes can affect the device's performance, including gain error, offset voltage, and linearity. It's essential to consider these effects when designing the system, especially in high-temperature or high-reliability applications.
  • The AD5246BKSZ10-RL7 can be interfaced with a microcontroller or FPGA using a standard SPI interface. Key considerations include ensuring proper clock synchronization, using a compatible voltage level translator if necessary, and implementing error detection and correction mechanisms to ensure reliable data transfer.
  • The AD5246BKSZ10-RL7 requires a specific power sequencing procedure to ensure proper operation. It's essential to follow the recommended power-up and power-down procedures outlined in the datasheet to prevent damage to the device or system malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5246BKSZ10-RL7 Overview

Use the download button to access the AD5246BKSZ10-RL7 schematic symbol, PCB footprint, and 3D model.
