AD5260BRUZ20-RL7 - Analog Devices

Description: Digital Potentiometer 20kOhm 256POS Volatile Linear 14-Pin TSSOP T/R

Download AD5260BRUZ20-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

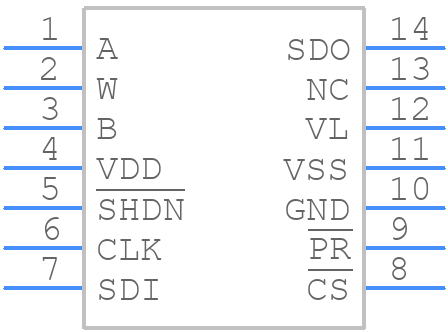

Symbol
AD5260BRUZ20-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5260BRUZ20-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD5260BRUZ20-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD5260BRUZ20-RL7 Details

  • Manufacturer Part Number:

    AD5260BRUZ20-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A SINGLE 4.5V TO 16.5V SUPPLY; ALSO REQUIRES A +2.7V TO +5.5V LOGIC SUPPLY

  • Bandwidth-Nom:

    0.31 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    20000 Ω

  • Width:

    4.4 mm

AD5260BRUZ20-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5260BRUZ20-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using an external reference voltage and a precision voltage source to improve calibration accuracy.
  • The AD5260BRUZ20-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Also, consider the thermal coefficient of the device and its impact on performance over temperature.
  • To minimize EMI and ensure EMC, use proper shielding, grounding, and filtering techniques. Ensure the device is placed in a shielded enclosure, and use EMI filters on the input and output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing signal loop areas.
  • Analog Devices ensures the AD5260BRUZ20-RL7 meets high reliability and quality standards through rigorous testing and qualification procedures. The device is built with high-quality materials, and its manufacturing process is controlled to minimize defects. Additionally, Analog Devices provides a 5-year warranty and supports the device with a comprehensive quality management system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5260BRUZ20-RL7 Overview

Use the download button to access the AD5260BRUZ20-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD526, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
