- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD5271BRMZ-20-RL7
- Part Number AD5271BRMZ-20-RL7
- Manufacturer Analog Devices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MSOP 10
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD5271BRMZ-20-RL7 Details
-
Manufacturer Part Number:
AD5271BRMZ-20-RL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Pin Count:
10
-
Manufacturer Package Code:
RM-10
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD5271BRMZ-20-RL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD5271BRMZ-20-RL7 involves keeping the digital and analog grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To ensure accuracy, it's essential to follow the recommended calibration procedure outlined in the datasheet. This involves writing a specific code to the device to calibrate the internal resistor network. Additionally, it's crucial to use a high-accuracy external reference voltage and to minimize noise and interference in the system.
-
The AD5271BRMZ-20-RL7 is a digital potentiometer, and as such, it does not have a maximum operating frequency in the classical sense. However, the device can respond to changes in the input code at a rate of up to 100 kHz. Faster changes may result in incomplete settling of the output resistance.
-
The AD5271BRMZ-20-RL7 is rated for operation from -40°C to 125°C. However, the device's accuracy and linearity may degrade at higher temperatures. It's essential to consult the datasheet and perform thorough testing to ensure the device meets the specific requirements of your application in a high-temperature environment.
-
The AD5271BRMZ-20-RL7 communicates via a standard SPI interface. To interface the device with a microcontroller, connect the SCLK, SDI, and SDO pins to the microcontroller's SPI pins. Ensure that the microcontroller's SPI clock frequency does not exceed 5 MHz, and that the microcontroller's SPI mode is set to Mode 0 or Mode 3.
Trust Checks
Community Provided
System Verified
Community Approved
AD5271BRMZ-20-RL7 Overview

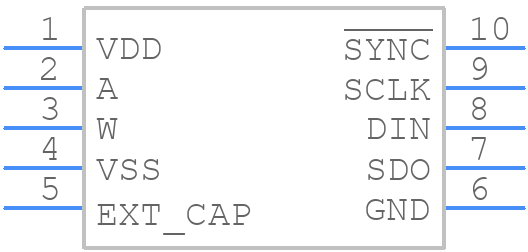

Use the download button to access the AD5271BRMZ-20-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD527,
or try a keyword search, such as Digital Potentiometers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
