A good PCB layout for the AD5273BRJZ1-REEL7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
To ensure accuracy and linearity, it's essential to follow the recommended layout and grounding guidelines, use a stable and low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
The recommended power-up sequence for the AD5273BRJZ1-REEL7 is to first apply the analog power supply (VDDA), followed by the digital power supply (VDD), and finally the logic inputs. This sequence helps prevent damage or malfunction due to voltage differences between the analog and digital domains.
The AD5273BRJZ1-REEL7 has an internal voltage reference that can be used to set the full-scale output voltage. To handle this, it's essential to consider the reference voltage tolerance, temperature coefficient, and noise performance when designing the system. Additionally, the internal reference can be bypassed if an external reference is preferred.
The AD5273BRJZ1-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and minimize power dissipation. Additionally, consider the device's thermal resistance and thermal shutdown features to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD5273BRJZ1-REEL7 Overview

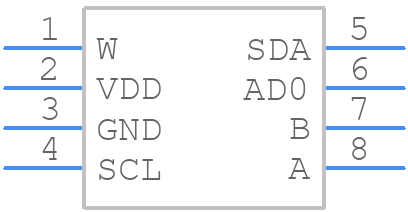

Use the download button to access the AD5273BRJZ1-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD527,
or try a keyword search, such as Digital Potentiometers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
