AD5293BRUZ-50-RL7 - Analog Devices

Description: Digital Potentiometers

Download AD5293BRUZ-50-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

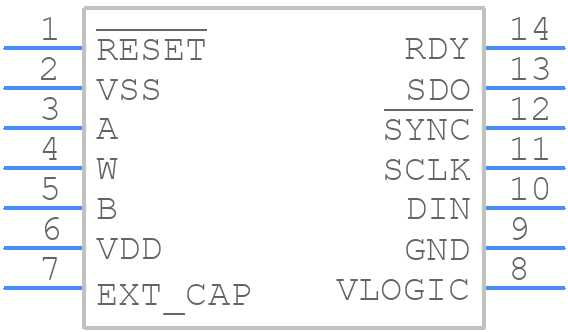

AD5293BRUZ-50-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5293BRUZ-50-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead TSSOP
click to zoom
3D Models
AD5293BRUZ-50-RL7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead TSSOP
click to zoom

AD5293BRUZ-50-RL7 Details

  • Manufacturer Part Number:

    AD5293BRUZ-50-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DEVICE SUPPORTS DUAL SUPPLY OPERATION

  • Bandwidth-Nom:

    0.21 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Positions:

    1024

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    1%

  • Resistor Terminal Voltage-Max:

    16.5 V

  • Resistor Terminal Voltage-Min:

    -9 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    4.4 mm

AD5293BRUZ-50-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5293BRUZ-50-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accuracy, it's essential to follow the recommended calibration procedure outlined in the datasheet. This involves writing a specific code to the device to calibrate the internal resistor network. Additionally, it's crucial to use a high-accuracy external reference voltage and to minimize noise and interference in the system.
  • The AD5293BRUZ-50-RL7 is a digital potentiometer, and as such, it does not have a maximum operating frequency in the classical sense. However, the device can respond to changes in the input code at a rate of up to 1 MHz, making it suitable for applications that require fast resistance changes.
  • The AD5293BRUZ-50-RL7 can be interfaced with a microcontroller using a standard SPI interface. The device requires a clock signal, a chip select signal, and a data input signal. The microcontroller can write to the device using the SPI protocol, and the device will respond by changing its resistance value accordingly.
  • The AD5293BRUZ-50-RL7 has a power-on reset feature that initializes the device to a known state after power-up. The device resets to its mid-scale resistance value (50 kΩ) after power-on, and the wiper position is set to the mid-point of the resistor array.
