AD5300BRM - Analog Devices

Description: Analog Devices AD5300BRM, Serial DAC, 250ksps, 8-Pin MSOP

Download AD5300BRM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

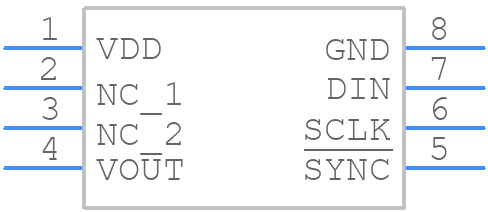

AD5300BRM - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5300BRM - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
AD5300BRM - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

AD5300BRM Details

  • Manufacturer Part Number:

    AD5300BRM

  • Source Url Status Check Date:

    2013-05-01 14:56:11.672

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5300BRM Frequently Asked Questions (FAQs)

  • It is recommended to place the AD5300BRM close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to, and to use a ground plane to minimize noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • The AD5300BRM has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the device's internal calibration registers to adjust the output voltage and gain to match their specific requirements.
  • The maximum output current of the AD5300BRM is 10mA. Exceeding this current limit can cause the device to overheat, leading to reduced performance and potential damage. Engineers should ensure that the output current is within the specified limit to maintain optimal performance.
  • The AD5300BRM has a specific power-up and power-down sequence that should be followed to ensure proper operation. Engineers should power up the device in the following order: VDD, VREF, and then VIN. During power-down, the sequence should be reversed. Additionally, the device should be powered down slowly to prevent voltage spikes.
  • The AD5300BRM has a maximum junction temperature of 150°C. Engineers should ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. Additionally, the device's power dissipation should be calculated to ensure it is within the safe operating range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5300BRM Overview

Use the download button to access the AD5300BRM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD530, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
