AD5300BRTZ-500RL7 - Analog Devices

Description: Analog Devices AD5300BRTZ-500RL7, 8 bit Serial DAC, 6-Pin SOT-23

Download AD5300BRTZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

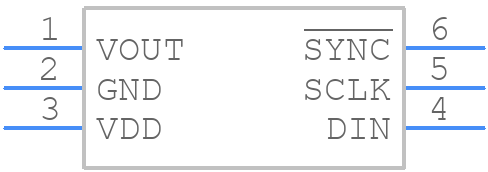

AD5300BRTZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5300BRTZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6
click to zoom
3D Models
AD5300BRTZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6
click to zoom

AD5300BRTZ-500RL7 Details

  • Manufacturer Part Number:

    AD5300BRTZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5300BRTZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5300BRTZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage regulation, it's essential to decouple the input and output pins with suitable capacitors, use a stable input voltage, and minimize noise on the input voltage. Additionally, ensure that the output capacitor is of sufficient value and type to maintain stability.
  • The AD5300BRTZ-500RL7 can deliver up to 500mA of output current. However, the maximum output current may be limited by the thermal performance of the package and the PCB design. It's essential to ensure proper thermal management to maintain reliability.
  • To protect the AD5300BRTZ-500RL7 from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended operating range. Additionally, consider using a voltage clamp or a TVS diode to protect against voltage transients.
  • The recommended input voltage range for the AD5300BRTZ-500RL7 is 2.7V to 5.5V. Operating the device outside this range may affect its performance, reliability, and accuracy.
