AD5301BRM-REEL - Analog Devices

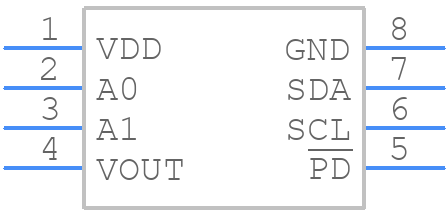

AD5301BRM-REEL Details

• Manufacturer Part Number:

  AD5301BRM-REEL

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  MO-187AA, MSOP-8

• Pin Count:

  8

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Output Voltage-Max:

  5.499 V

• Analog Output Voltage-Min:

  0.001 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  3 mm

• Linearity Error-Max (EL):

  0.3906%

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Settling Time-Max:

  8 µs

• Settling Time-Nom (tstl):

  6 µs

• Supply Current-Max:

  0.225 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
