AD53040KRP footprint, schematic symbol and 3D model by Analog Devices

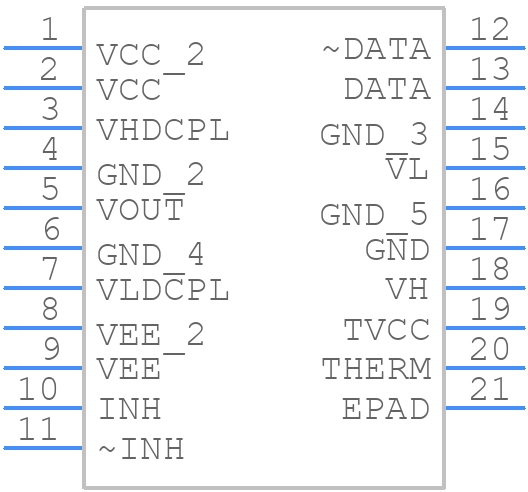

Symbol

click to zoom

PCB Footprints

AD53040KRP - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-21N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD53040KRP
Part Number AD53040KRP
Manufacturer Analog Devices
Pin Count 21
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P1032X265-21N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD53040KRP Details

Manufacturer Part Number:
AD53040KRP
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
HEAT SINK, ULTRA SMALL, PLASTIC, SOP-20
Pin Count:
20
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
YTEOL:
0
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e0
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Output Current Flow Direction:
SOURCE
Output Peak Current Limit-Nom:
0.15 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
225
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
12.36 V
Supply Voltage-Min:
11.64 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
OTHER
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
7.5 mm

AD53040KRP Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
Calibration involves adjusting the internal voltage reference and gain settings. Follow the calibration procedure outlined in the datasheet, and use the AD53040KRP's internal calibration registers to adjust the output voltage and gain to match your specific requirements.
The AD53040KRP can source up to 10mA of output current. However, as the output current increases, the output voltage accuracy may degrade. To maintain optimal accuracy, it's recommended to keep the output current below 5mA.
The AD53040KRP has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. The OVP circuit limits the input voltage to 7V, while the UVP circuit prevents the device from operating below 2.7V. However, it's still recommended to use external protection circuits for added safety.
The AD53040KRP has a thermal pad on the bottom of the package, which should be connected to a thermal plane or heat sink to dissipate heat. Ensure good thermal conductivity between the device and the thermal plane to prevent overheating, which can affect the device's reliability and accuracy.

Trust Checks

System Verified

AD53040KRP Overview

Use the download button to access the AD53040KRP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD530, or try a keyword search, such as Peripheral Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
