AD5304BRMZ - Analog Devices

Description: AD5304BRMZ, 8 bit-Bit DAC Quad 167ksps, SPI, Microwire, 10-Pin MSOP

Download AD5304BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

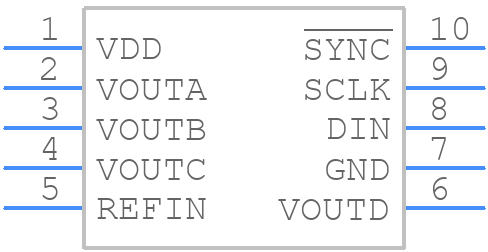

AD5304BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5304BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 10
click to zoom
3D Models
AD5304BRMZ - Analog Devices - 3D model - Small Outline Packages - MSOP 10
click to zoom

AD5304BRMZ Details

  • Manufacturer Part Number:

    AD5304BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

AD5304BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD5304BRMZ has an internal calibration circuit that sets the output voltage to the desired value. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure the input voltage is within the recommended range.
  • The AD5304BRMZ can supply up to 10mA of output current. However, high output currents can affect the output voltage accuracy. To maintain accuracy, it's recommended to keep the output current below 5mA.
  • The AD5304BRMZ has a built-in POR and BOR function that resets the device during power-up or brown-out conditions. To handle these functions, ensure that the power supply is stable and within the recommended range, and use an external capacitor to filter out noise and glitches.
  • The recommended operating temperature range for the AD5304BRMZ is -40°C to +125°C. Operating the device outside this range can affect its performance, accuracy, and reliability. Ensure that the device is operated within the recommended temperature range for optimal performance.
