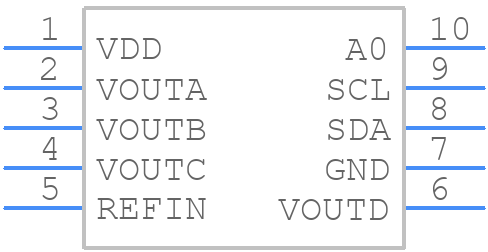

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD5305BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP]
click to zoom
3D Models
AD5305BRMZ - Analog Devices  - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP]
click to zoom

AD5305BRMZ Details

  • Manufacturer Part Number:

    AD5305BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5305BRMZ Frequently Asked Questions (FAQs)

  • The AD5305BRMZ is a high-precision device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the device close to the analog signal sources. Additionally, decoupling capacitors should be placed as close to the device as possible to minimize noise.
  • To ensure accuracy over temperature, it is essential to consider the temperature coefficient of the device. The AD5305BRMZ has a specified temperature range of -40°C to 125°C. To minimize temperature-related errors, it is recommended to use a thermistor or thermocouple to monitor the temperature and compensate for any errors. Additionally, the device should be calibrated at multiple temperatures to ensure accuracy.
  • The recommended power-up sequence for the AD5305BRMZ is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD5305BRMZ has an output voltage range of 0 V to VREF. To ensure the output voltage is within the specified range, it is recommended to use an external voltage reference (VREF) that is within the specified range of 2.5 V to 5.5 V. Additionally, the output voltage should be buffered using an op-amp or a voltage follower to prevent loading effects.
  • The AD5305BRMZ requires calibration to ensure accuracy and linearity. The recommended method is to use a two-point calibration, where the device is calibrated at 0 V and full-scale output voltage. This can be done using an external calibration circuit or through software calibration using a microcontroller or DSP.
