AD5307BRUZ - Analog Devices

Description: AD5307BRUZ, 8 bit-Bit DAC Quad 167ksps, SPI, Microwire, 16-Pin TSSOP

Download AD5307BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

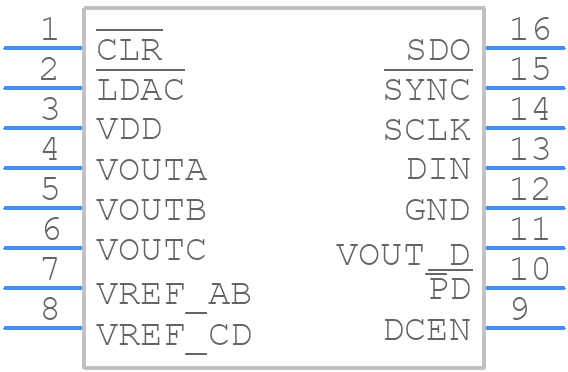

AD5307BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5307BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5307BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5307BRUZ Details

  • Manufacturer Part Number:

    AD5307BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5307BRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding layout, keeping the analog and digital grounds separate, and placing the device close to the power supply. Additionally, ensure that the input and output traces are kept short and away from noise sources.
  • The AD5307BRUZ has a programmable output voltage range. To configure it, set the VREF pin to the desired reference voltage, and then use the internal resistive divider network to set the output voltage range. Refer to the datasheet for specific resistor values and calculations.
  • The AD5307BRUZ has a maximum output current capability of 10mA. Exceeding this limit can affect the output voltage accuracy. To maintain accuracy, ensure that the output current is within the specified limit, and consider using an external buffer amplifier if higher currents are required.
  • The AD5307BRUZ has a high power supply rejection ratio (PSRR), which helps to minimize the effects of input voltage noise and ripple. To further reduce noise, use input filtering techniques such as capacitive filtering, ferrite beads, or LC filters. Refer to the datasheet for specific recommendations.
  • The AD5307BRUZ has a maximum junction temperature of 150°C. To ensure reliability, ensure that the device is operated within the specified temperature range, and consider using thermal management techniques such as heat sinks, thermal vias, or thermal interface materials.
