AD5308ARUZ - Analog Devices

Description: DAC,AD5308A 8bit 6us octal SPI TSSOP Analog Devices AD5308ARUZ, 8-channel 8 bit Serial DAC, 167ksps, 16-Pin TSSOP

Download AD5308ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

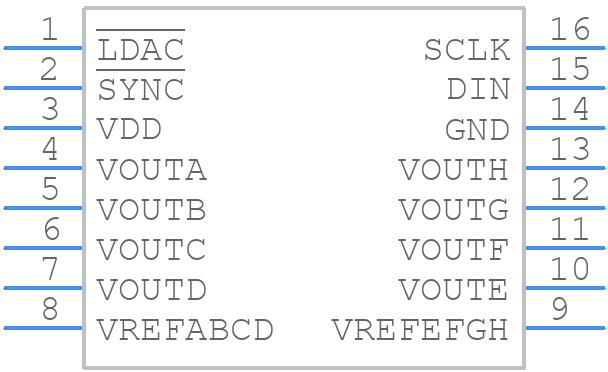

AD5308ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5308ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom
3D Models
AD5308ARUZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
click to zoom

AD5308ARUZ Details

  • Manufacturer Part Number:

    AD5308ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5308ARUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
  • To ensure accuracy, use a high-precision voltage reference, such as the ADR421 or ADR4525, and ensure that the input voltage is within the specified range. Also, use a low-noise power supply and minimize noise coupling into the DAC output.
  • The recommended clock frequency for the AD5308ARUZ is between 10 kHz and 50 kHz. A higher clock frequency can improve the DAC's settling time, but it may also increase the noise and power consumption. A lower clock frequency can reduce the noise and power consumption, but it may also increase the settling time.
  • The POR and BOR functions are enabled by default. To handle them, ensure that the power supply is stable and within the specified range before enabling the DAC. Also, use a capacitor on the VDD pin to filter out any noise or glitches that may trigger the POR or BOR functions.
  • The recommended method is to use the SYNC pin to synchronize the DAC with an external clock or signal. The SYNC pin can be connected to an external clock or signal, and the DAC will synchronize its output with the rising edge of the SYNC signal.
