AD5310BRMZ-REEL7 - Analog Devices

Description: 2.7 V to 5.5 V, 140 µA, Rail-to-Rail Voltage Output 10-Bit DAC in a SOT-23

Download AD5310BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

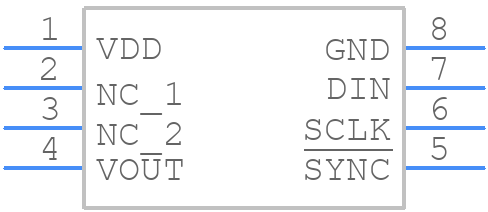

Symbol
AD5310BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5310BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8_2025
click to zoom
3D Models
AD5310BRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-8_2025
click to zoom

AD5310BRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5310BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MICRO, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5310BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5310BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5310BRMZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525, and to minimize noise and interference on the input and output lines. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the AD5310BRMZ-REEL7 is 10mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To avoid this, it's recommended to use an external buffer amplifier or a voltage regulator with a higher current capability if the output current requirement exceeds 10mA.
  • To program the AD5310BRMZ-REEL7's output voltage using the SPI interface, the user needs to send a 16-bit command word to the device. The command word consists of a 4-bit command code, a 6-bit voltage code, and 6 bits of don't-care. The voltage code is calculated based on the desired output voltage and the device's internal voltage reference.
  • The power-on reset (POR) timing of the AD5310BRMZ-REEL7 is approximately 2ms. During this time, the output voltage is undefined, and the device is not guaranteed to be in a valid state. After the POR timing, the output voltage will settle to the programmed value. It's recommended to add a reset signal or a power-good signal to ensure that the system is not enabled until the output voltage is stable.
