AD5310BRMZ - Analog Devices

Description: AD5310BRMZ, 10-Bit 10 Bit DAC 167ksps, SPI, Microwire, 8-Pin MSOP

Download AD5310BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

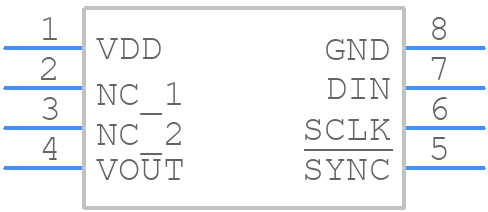

AD5310BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5310BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD5310BRMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD5310BRMZ Details

  • Manufacturer Part Number:

    AD5310BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MICRO, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5310BRMZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5310BRMZ placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Keep the analog and digital grounds separate, and use a single-point ground connection to minimize noise and crosstalk.
  • To ensure accurate voltage reference output, make sure to decouple the VREF pin with a 10uF capacitor to GND, and use a low-noise, low-impedance power supply. Also, ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • The recommended output capacitor value is 10uF. This is because the AD5310BRMZ has a relatively high output impedance, and a larger capacitor helps to filter out noise and ensure a stable output voltage.
  • Yes, the AD5310BRMZ can be used as a voltage regulator, but it is not designed to provide high current output. The maximum output current is limited to 5mA, and the output voltage is fixed at 2.5V or 1.25V, depending on the version. Additionally, the output voltage may droop under heavy load conditions.
  • To troubleshoot issues with the AD5310BRMZ, start by checking the power supply voltage and ensuring it is within the recommended operating range. Next, verify that the input and output capacitors are properly connected and of the recommended value. If the issue persists, check for noise and crosstalk in the system, and ensure that the AD5310BRMZ is properly decoupled from the power supply and other components.
