AD5310BRTZ-500RL7 - Analog Devices

Description: 2.7 V to 5.5 V, 140 µA, Rail-to-Rail Voltage Output 10-Bit DAC in a SOT-23

Download AD5310BRTZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

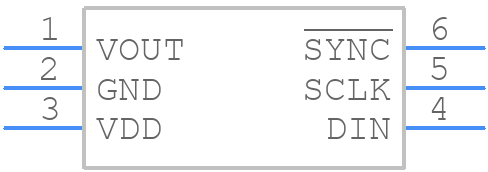

Symbol
AD5310BRTZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5310BRTZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6
click to zoom
3D Models
AD5310BRTZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6
click to zoom

AD5310BRTZ-500RL7 Details

  • Manufacturer Part Number:

    AD5310BRTZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5310BRTZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5310BRTZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage output, make sure to use a high-precision voltage reference, such as the ADR421, and follow proper PCB layout and decoupling guidelines. Additionally, calibrate the device during manufacturing to compensate for any internal voltage reference errors.
  • The AD5310BRTZ-500RL7 can drive up to 1nF of capacitive load. However, it's recommended to limit the capacitive load to 100pF or less to ensure stability and optimal performance.
  • Implement fault detection and protection by monitoring the FAULT pin, which goes high in case of an overcurrent or overtemperature condition. You can also use external circuitry to detect output voltage faults and implement protection mechanisms such as shutdown or reset.
  • The recommended power-up sequence for the AD5310BRTZ-500RL7 is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the internal voltage reference is stable before the digital circuitry is powered up.
