AD5310RBRMZ - Analog Devices

Description: 10-Bit nanoDAC, SPI Interface and 2 ppm/°C On-Chip Reference

Download AD5310RBRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

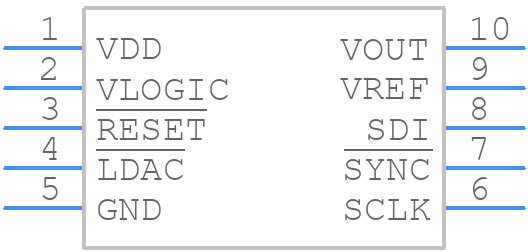

AD5310RBRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5310RBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD5310RBRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD5310RBRMZ Details

  • Manufacturer Part Number:

    AD5310RBRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5310RBRMZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5310RBRMZ placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and avoid routing digital signals near the AD5310RBRMZ.
  • The AD5310RBRMZ has an internal calibration circuit that allows for self-calibration. To calibrate the device, apply the recommended voltage to the VREF pin and follow the calibration procedure outlined in the datasheet. The device will automatically adjust its internal voltage reference and gain to ensure accurate performance.
  • The AD5310RBRMZ is rated for operation from -40°C to 125°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, and avoid exposing the device to extreme temperatures or thermal gradients. Use thermal vias and thermal pads to dissipate heat, and consider using a heat sink if necessary.
  • To minimize EMI and ensure EMC, use a shielded enclosure, and keep the AD5310RBRMZ away from high-frequency sources. Use a common-mode choke or ferrite bead to filter out high-frequency noise, and ensure good grounding and shielding of the PCB. Follow proper PCB layout and routing guidelines to minimize radiation and susceptibility.
  • The AD5310RBRMZ requires a specific power sequencing to ensure proper operation. Apply power to the VCC pin first, followed by the VREF pin. When powering down, remove power from the VREF pin first, followed by the VCC pin. Ensure that the power supplies are stable and well-regulated to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5310RBRMZ Overview

Use the download button to access the AD5310RBRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD531, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
