AD5312WARMZ-REEL7 - Analog Devices

Description: 2.5 V to 5.5 V, 230 μA, Dual Rail-to-Rail, Voltage Output 8-/10-/12-Bit DACs 300 μA @ 5 V −40°C to +105°C

Download AD5312WARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

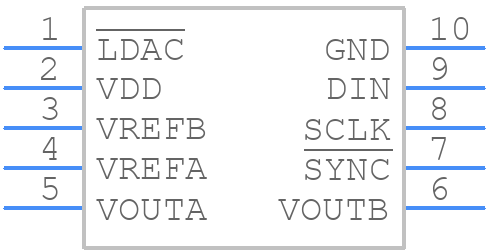

Symbol
AD5312WARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5312WARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5312WARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5312WARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5312WARMZ-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:11.887

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.45 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5312WARMZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD5312 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Analog Devices provides a detailed application note (AN-1291) that guides users through the configuration process, including setting the output voltage, selecting the correct input range, and configuring the internal reference.
  • The recommended power-up sequence is to apply the supply voltage (VCC) before the input voltage (VIN). This ensures that the internal reference is stable before the output voltage is enabled. Improper power-up sequencing can result in incorrect output voltage or oscillations.
  • The AD5312WARMZ-REEL7 has built-in input voltage transient protection and brownout detection. It can withstand input voltage transients up to 12 V and has a brownout detection threshold of 2.2 V. If the input voltage falls below this threshold, the device enters a shutdown state to protect itself and the system.
  • The AD5312WARMZ-REEL7 has a thermal pad that should be connected to a copper plane on the PCB to dissipate heat. Proper thermal management is crucial to ensure the device's reliability and prevent overheating, which can lead to reduced performance, accuracy, and lifespan.
