AD5313RBRUZ - Analog Devices

Description: Analog Devices AD5313RBRUZ, 2-channel 10 bit Serial DAC, 16-Pin TSSOP

Download AD5313RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

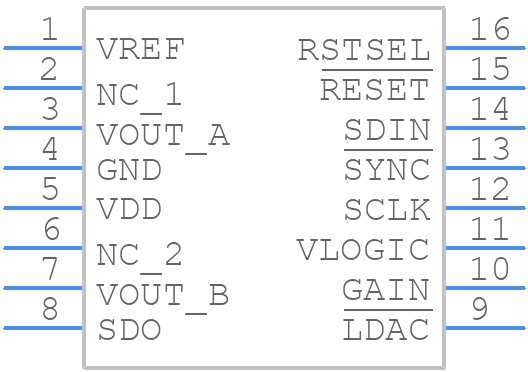

AD5313RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5313RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5313RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5313RBRUZ Details

  • Manufacturer Part Number:

    AD5313RBRUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:11.909

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5313RBRUZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5313RBRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the device.
  • To ensure accurate voltage reference performance with the AD5313RBRUZ, it's essential to decouple the VREF pin with a 10nF capacitor to GND, use a low-noise power supply, and minimize noise on the VCC pin. Additionally, the device should be operated within the recommended temperature range, and the input voltage should be within the specified range.
  • The recommended calibration procedure for the AD5313RBRUZ involves applying a known input voltage, measuring the output code, and adjusting the offset and gain registers to achieve the desired accuracy. The device should be calibrated at multiple points across the input range to ensure linearity and accuracy.
  • To handle overvoltage and undervoltage conditions with the AD5313RBRUZ, it's recommended to use external voltage protection devices such as TVS diodes or voltage regulators to limit the input voltage to within the specified range. Additionally, the device has built-in overvoltage protection, but it's still important to follow proper PCB design and layout practices to minimize the risk of damage.
  • To reduce noise and EMI with the AD5313RBRUZ, it's recommended to use a shielded enclosure, keep the device away from noise sources, and use a low-pass filter on the input signal. Additionally, the device should be operated in a low-noise environment, and the PCB should be designed with noise reduction in mind, such as using a solid ground plane and minimizing signal trace lengths.
