AD5314ARMZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 10-BIT QUAD DAC I.C.

Download AD5314ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

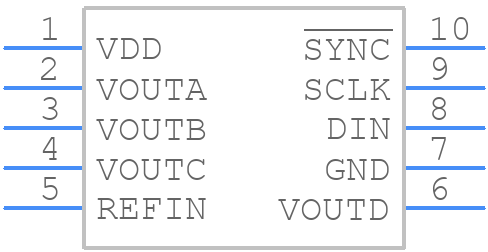

Symbol
AD5314ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5314ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5314ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5314ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5314ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5314ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5314ARMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5314ARMZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The recommended input voltage range for the AD5314ARMZ-REEL7 is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and accuracy.
  • To program the AD5314ARMZ-REEL7's output voltage using the SPI interface, you need to send a 16-bit command word to the device. The command word consists of a 4-bit command code, a 6-bit voltage code, and 6 bits of don't-care bits. The voltage code is calculated based on the desired output voltage and the device's internal voltage reference.
  • The power-on reset (POR) timing for the AD5314ARMZ-REEL7 is typically around 2ms. This means that the device requires a minimum of 2ms to power up and become operational after power-on.
